Bonded 5G With Teltonika and Bondix: The RUTM52 Guide

What just changed with Teltonika and Bondix

Bondix by SIMA has run on Teltonika hardware for years, but getting it onto a router used to mean downloading a package that matched your exact model and firmware, uploading it by hand, and clicking past a warning that the software was unsigned. With RutOS 07.24, Teltonika added a dedicated Third-Party Packages tab to the Package Manager, and Bondix is the first independent application listed in it.

That sounds like a small UI change. It is not. Bondix now appears inside the interface where engineers already manage their router software, installs in a couple of clicks, and keeps itself on the correct version whenever the firmware moves. The barrier to trying bonded connectivity has effectively dropped to zero, and that is what makes the next part interesting.

Why the RUTM52 is the natural pairing for bonded 5G

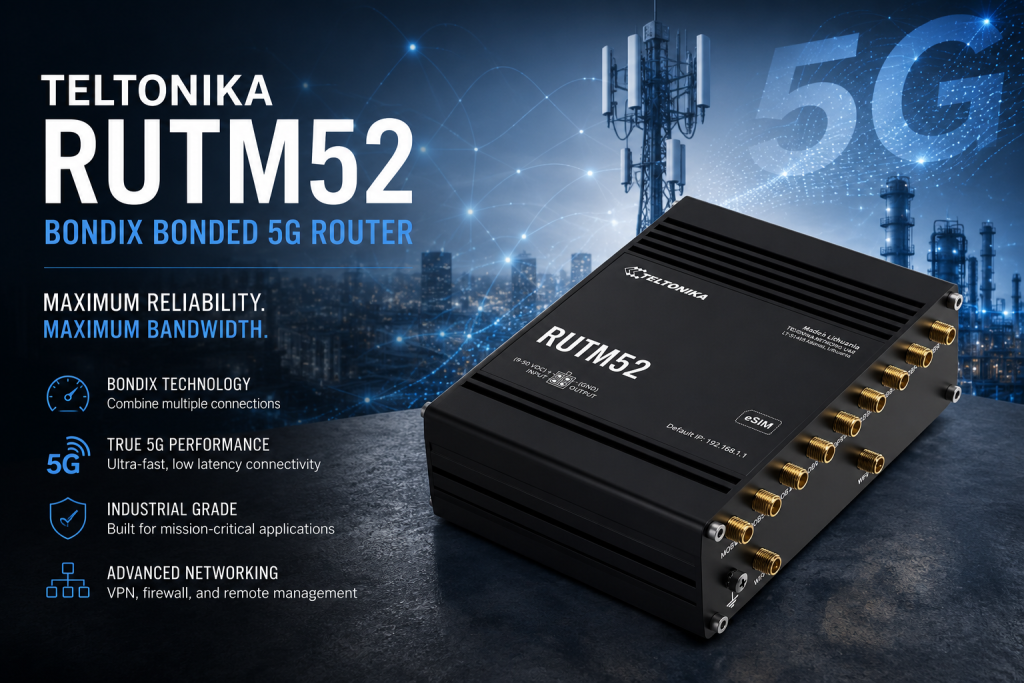

Most cellular routers have one modem. To bond multiple mobile links on single-modem hardware you need several routers, one per SIM. The Teltonika RUTM52 changes that maths, because it is Teltonika’s first router with two 5G modems inside a single DIN-rail box.

The detail that matters for bonding is on the SIM side. The RUTM52’s two modems each run their own SIM, both physical SIMs operate simultaneously, and switching is independent per modem. In plain terms: one RUTM52 gives you two genuinely concurrent 5G connections, which is exactly what a bonding engine needs to pool.

Teltonika RUTM52 specifications at a glance

Bonding, load balancing and failover are not the same thing

This is the distinction that decides whether bonding is worth the effort for your use case, so it is worth being precise. RutOS already does failover and load balancing natively. Bondix adds true bonding on top.

The practical takeaway: if you run a 20 Mbps live upload and one carrier congests at a busy venue, load balancing does not help that single stream, but bonding keeps it alive by spreading its packets across both networks. That continuity for a single session is the whole reason to bond.

How bonding works on a single RUTM52

Install Bondix from the Package Manager, point it at your bonding server, and select the two mobile interfaces (one per modem) as the links to bond. From that point the router presents a single bonded connection to everything behind it, drawing on both 5G networks together and riding through either one failing.

The one detail the announcements gloss over: bonding needs a concentrator at the far end. Traffic is split across the links and reassembled by a Bondix server, which you either self-host as a virtual appliance or run through Bondix’s cloud. Bondix publishes a server calculator to size that endpoint. Budget for it in both cost and design; the router-side client is only half the system.

Going further: bonding four SIMs across two RUTM52 units

Because Bondix bonds WAN interfaces rather than modems specifically, you are not capped at the two modems inside one RUTM52. Place a second RUTM52 in front of the first, set its two modems to pass their connections through as separate Ethernet WANs, and the primary unit can bond all four cellular links into one pipe. In effect: four SIMs, potentially across four different networks, pooled into a single resilient connection from two small boxes.

Be honest about what this involves. You are managing two devices, two antenna sets and four data plans, and both the primary router’s CPU and the bonding server have to carry the combined load. The interface and passthrough configuration needs care and testing before it goes near a production job. But for a broadcast truck or an incident-command vehicle that wants maximum aggregate uplink and maximum network diversity, four bonded 5G SIMs is a genuinely powerful build, and few competing platforms get there as compactly.

Where eSIM fits in

The RUTM52 also carries an eSIM that holds up to seven downloadable profiles. eSIM does not add a third concurrent modem, so it does not give you another bonded link. What it gives you is flexibility: you can provision or swap the operator on a modem remotely, which matters when a bonded deployment travels across regions or when you want to change carriers on a device already in the field.

For bonding specifically, that flexibility helps with network diversity. The more genuinely independent the carriers behind your links, the more resilient the bond, and remote eSIM provisioning makes it easier to keep those links on different networks. If you are choosing which operators and SIM types to run, our sister guides on SGP.32 eSIM standards and selecting IoT SIMs are worth a read alongside this one.

Applications and case studies for bonded 5G

Bonding earns its place wherever a reliable connection is essential but no single network can be trusted on its own. A few concrete scenarios:

Live broadcast and ENG. A broadcast truck bonds two 5G carriers so a high-bitrate feed from a packed stadium survives one operator congesting under crowd load. This is Bondix’s flagship use case, and the RUTM52’s dual modems make it a single-box solution.

Events and temporary sites. A festival keeps box-office tills, card payments and production comms online by bonding two mobile networks, with Starlink or a broadband uplink added to the pool where available.

Emergency and public safety. An incident-command vehicle holds a stable uplink in an area where any individual network is patchy, because the bond only fails if every link fails at once.

Maritime and transport. Passenger Wi-Fi on a coach or ferry keeps sessions alive across cell handovers by bonding two carriers, smoothing the dropouts a single SIM would suffer on the move.

Construction and remote field operations. A site office bonds 5G with LTE fallback for a usable connection months before a fixed line can be installed.

Business continuity. A retail branch bonds its fixed line with 5G so card terminals and point-of-sale never drop, even during a broadband outage.

Agriculture and remote monitoring. In rural areas, bonding two weak but independent carriers can lift a marginal single-network signal into a dependable working pipe.

How to try it

Teltonika and Bondix are offering a free 48-hour trial with full bonding functionality and no commitment. On a compatible device running RutOS 07.24, open System, then Package Manager, find Bondix under the Third-Party Packages tab, and install it. From there you connect to a Bondix server and enable bonding on your chosen interfaces. The Bondix trial page covers the server side, and the Bondix WAN bonding overview explains the underlying technology.

Frequently asked questions

Does the RUTM52 do WAN bonding out of the box?

No. RutOS provides failover and load balancing natively. True bonding, where one session uses all links at once, needs the Bondix package plus a bonding server.

How many 5G connections can one RUTM52 bond?

Two. The router has two independent 5G modems, and with one SIM assigned to each, both run concurrently as bondable links.

Can I bond four SIM cards?

Yes, using two RUTM52 units, with the second unit’s modems passed through as Ethernet WANs to the primary unit running Bondix. It is an advanced build that needs careful configuration and testing.

Is bonding the same as load balancing?

No. Load balancing sends different sessions down different links; a single stream still rides one link. Bonding spreads a single session across every link and pools their bandwidth.

Do I need a server for bonding?

Yes. A Bondix concentrator reassembles the split traffic. You can self-host it as a virtual appliance or use Bondix’s cloud.

Does the eSIM give me an extra bonded link?

No. The eSIM adds remote provisioning and operator flexibility, not a third concurrent modem. Physical concurrency on the RUTM52 is two links.
