Milesight Industrial Router Range – 2026 Product Guide
Milesight makes one of the more complete industrial cellular router ranges available to UK and European buyers right now. The lineup runs from compact CAT1 mini routers designed for low-power embedded deployments, through 4G Pro series devices with dual SIM, serial ports, and PoE PSE, up to 5G cellular routers and outdoor CPE units rated to IP67. There is a variant for most industrial connectivity requirements without needing to go outside a single vendor ecosystem.
The 4G range splits into three tiers. The Lite series covers straightforward WAN failover and basic site connectivity. The Pro series – the UR32 and UR35 families – adds dual SIM, MicroSD, RS232/RS485 serial interfaces, and digital I/O, making these the right choice anywhere serial device integration or SIM redundancy matters. The UR35 extends that to five Ethernet ports for multi-device installations. All Pro variants are available with optional Wi-Fi and PoE PSE depending on site requirements.
The 5G range offers three form factors: the UF31 dongle for embedded applications where space is the primary constraint, the UF51 outdoor 5G CPE for fixed wireless access in harsh environments, and the UR75 cellular router for applications needing a full-featured 5G gateway with multi-port switching and serial connectivity. The UR75 is also available with PoE PSE for powering downstream devices over a 5G backhaul.
The matrix below covers the full range including connectivity generation, GPS, Wi-Fi, PoE, SIM capacity, Ethernet ports, serial interfaces, and IP rating. Use the filters to narrow by product family.
| Part Number | Description | Cellular | Wi-Fi | Ethernet | Info |
|---|---|---|---|---|---|
| 5G Series — Dongle | |||||

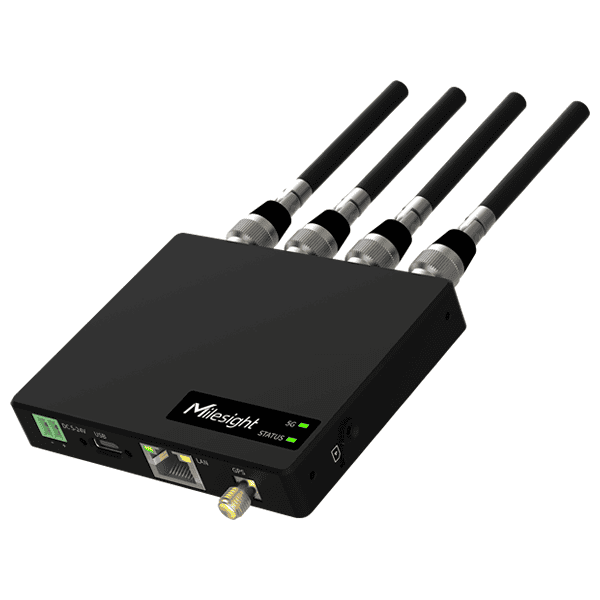

| UF31-554AE | 5G dongle. Compact embedded applications. | 5G | – | 1 x GbE | |
 | |||||
| 5G Series — CPE | |||||

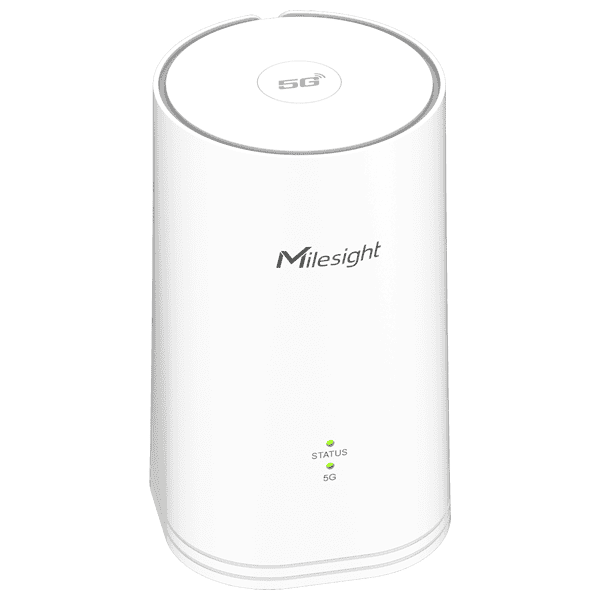

| UF51-504AE | 5G outdoor CPE. IP67. PoE PD. RS485. DI/DO. | 5G | – | 2 x GbE (inc 2.5G) | |
 | |||||
| UF51-504AE-W4 | 5G outdoor CPE + Wi-Fi 6. IP67. PoE PD. RS485. DI/DO. | 5G | ✓ | 2 x GbE (inc 2.5G) | |
 | |||||
| 5G Series — Cellular Router | |||||

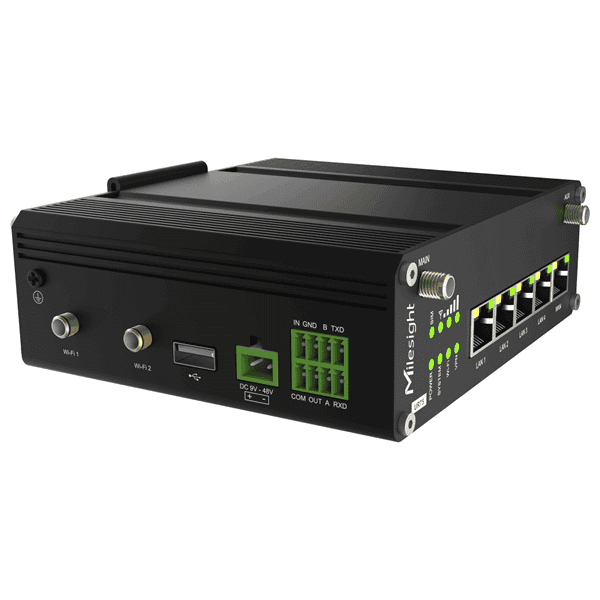

| UR75-504AE-W2 | 5G cellular router. Dual SIM. Wi-Fi. GPS. RS232 + RS485. DI/DO. | 5G | ✓ | 5 x GbE | |
 | |||||

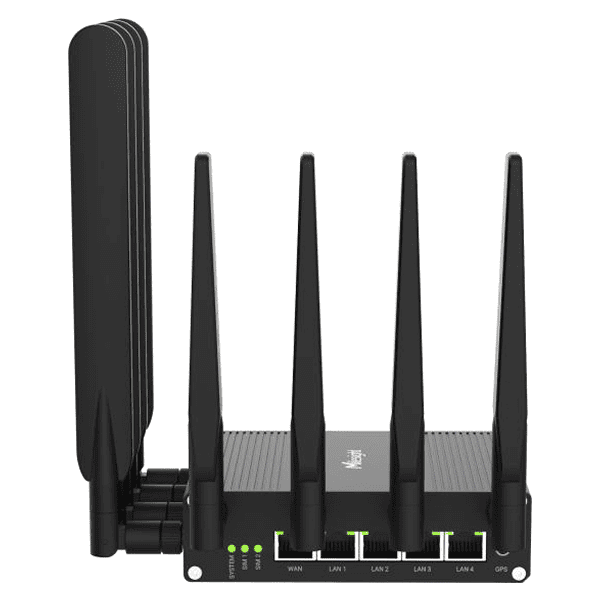

| UR75-504AE-P-W2 | 5G cellular router + PoE PSE. Dual SIM. Wi-Fi. GPS. RS232 + RS485. | 5G | ✓ | 5 x GbE | |
 | |||||
| Mini Industrial Router — CAT1 | |||||
| UR41L-L0CEU | 4G LTE CAT1. Ultra-low power. Configurable standby. | CAT1 | – | 1 x FE | |
 | |||||
| Mini Industrial Router — 4G | |||||

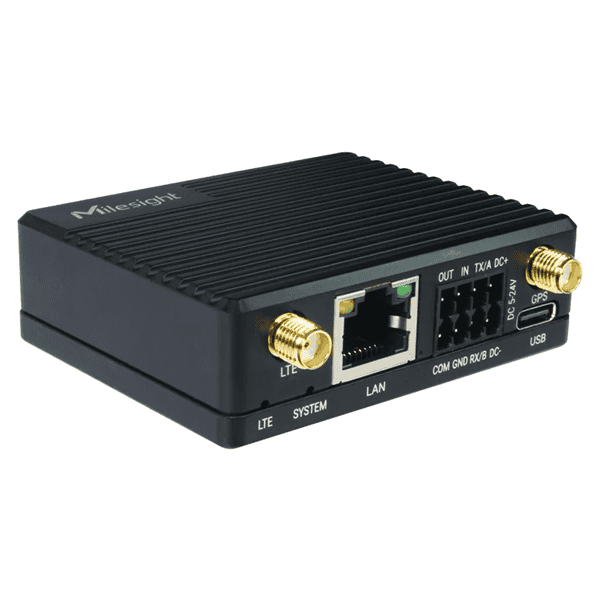

| UR41-L08EU | 3G & 4G + GPS. Compact embedded. IP30. | 4G | – | 1 x FE | |
 | |||||
| Lite Series | |||||
| UR32L-L0GEU | 3G & 4G. 2 x Fast Ethernet. | 4G | – | 2 x FE | |
 | |||||
| UR32L-L0GEU-P | 3G & 4G + PoE PSE. 2 x Fast Ethernet. | 4G | – | 2 x FE | |
 | |||||
| UR32S-L0GEU | 3G & 4G + Wi-Fi. PoE PSE. 2 x FE. EMEA / Asia-Pacific / Australia. | 4G | ✓ | 2 x FE | |
 | |||||
| UR32S-L0GEU-P | 3G & 4G + Wi-Fi + PoE PSE. 2 x FE. EMEA / Asia-Pacific / Australia. | 4G | ✓ | 2 x FE | |
 | |||||
| Pro Series — UR32 | |||||
| UR32-L0GEU-485 | 3G & 4G. Dual SIM. MicroSD. RS232/RS485. DI/DO. | 4G | – | 2 x FE | |
 | |||||
| UR32-L0GEU-W-485 | 3G & 4G + Wi-Fi. Dual SIM. MicroSD. RS232/RS485. DI/DO. | 4G | ✓ | 2 x FE | |
 | |||||
| UR32-L0GEU-P-W-485 | 3G & 4G + Wi-Fi + PoE PSE. Dual SIM. MicroSD. RS232/RS485. DI/DO. | 4G | ✓ | 2 x FE | |
 | |||||
| Pro Series — UR35 | |||||
| UR35-L0GEU | 3G & 4G. Dual SIM. MicroSD. 5 x FE. RS232 + RS485. DI/DO. | 4G | – | 5 x FE | |
 | |||||
| UR35-L0GEU-P | 3G & 4G + PoE PSE. Dual SIM. MicroSD. 5 x FE. RS232 + RS485. DI/DO. | 4G | – | 5 x FE | |
 | |||||
| UR35-L0GEU-W | 3G & 4G + Wi-Fi. Dual SIM. MicroSD. 5 x FE. RS232 + RS485. DI/DO. | 4G | ✓ | 5 x FE | |
 | |||||
| UR35-L0GEU-P-W | 3G & 4G + Wi-Fi + PoE PSE. Dual SIM. MicroSD. 5 x FE. RS232 + RS485. DI/DO. | 4G | ✓ | 5 x FE | |
 | |||||
Milesight Router Accessories
A complete reference to the official accessories available for the Milesight cellular router range – covering antennas, installation hardware, connection cables, terminal blocks, and power adapters.
Milesight publish a comprehensive accessories catalogue alongside their UR, UF, and related router product lines. This guide breaks that catalogue into logical sections so you can quickly identify the right part for your router model. Compatibility is model-specific – always check the Compatible Models column before ordering.
4G Cellular Antennas
AntennaOmnidirectional LTE antennas covering standard 800-2700 MHz bands. Available in magnetic-mount and direct-fit stubby formats. The 700 MHz variant adds coverage for Band 28, commonly used by rural LTE networks in Australia and parts of Europe.
| Model / Part No. | Description | Frequency | Gain | Cable / Height | Compatible Models |
|---|---|---|---|---|---|
| YL-AB0727-4303BSM-1M5 | 4G Magnetic Mount Antenna | 800-960 MHz, 1710-2700 MHz | 2.5 / 3 dBi | 1.5 m, 224 mm | UR32, UR32L, UR35, UR41/41L, UR75v2-4G, UR32S |
| YL-AB0727-4303BSM-2M | 4G LTE Magnetic Mount Antenna – 700 MHz | 700-960 MHz, 1710-2700 MHz | 2.5 / 3 dBi | 2 m, 224 mm | UR32, UR32L, UR35, UR32S, UR41/41L, UR75v2-4G |
| AC-Q7027-24W | 4G Stubby Antenna (108 mm) | 791-2700 MHz | 2 dBi | Direct-fit, 108 mm | UR32, UR32L, UR35, UR32S, UR41/41L, UR75v2-4G |
| C620-510204A | 4G Stubby Antenna (195 mm) | 791-960 MHz, 1710-2690 MHz | 4.4 / 5 dBi | Direct-fit, 195 mm | UR32S (std), UR32, UR32L, UR35, UR41/41L, UR75v2-4G |
5G Antennas
Antenna5G-rated antennas spanning the full sub-6 GHz range (600 MHz to 6 GHz). The 4-in-1 combination box antenna is designed for external mounting where a single weatherproof housing is preferred.
| Model / Part No. | Description | Frequency | Format | Compatible Models |
|---|---|---|---|---|
| RFDPA222200SMMB801 | 5G Stubby Antenna (229 mm) | 600 MHz – 6 GHz | Direct-fit, 22 x 229 mm | UR75v3, UR75v2-5G, UF31 |
| 4-in-1 Combination Antenna | 5G Antenna Box (12 mm thread, 0.5 m cable) | 4G/5G combined | Box mount, 120 x 43 mm | UF31, UR75v3, UR75v2-5G |
Wi-Fi Antennas
AntennaDual-band foldable paddle antennas covering both 2.4 GHz and 5 GHz. Two variants are available – check which is the standard-fit for your model.
| Model / Part No. | Description | 2.4 GHz Gain | 5 GHz Gain | Height | Compatible Models |
|---|---|---|---|---|---|
| SSR-1900033 | Dual-Band Wi-Fi Antenna | 3.5 dBi | 6 dBi | 171 mm | UR32, UR32S, UR35, UR75v3, UR75v2-4G, UR75v2-5G |
| Y0CQW0CA1AA | Dual-Band Wi-Fi Antenna | 2.86 dBi | 3.17 dBi | 160.9 mm | UR32/UR32S/UR32L/UR35-L0GEU (std) |
GPS Antenna
AntennaActive GPS antenna for GPS-enabled Milesight router models. Also available as part of a waterproof combination antenna unit pairing 4G and GPS (or 4G and Wi-Fi) into a single external housing.
| Description | Type | Compatible Models |
|---|---|---|
| Active GPS Antenna | Single antenna | All GPS-enabled models (incl. UR32, UR35, UR75-4G series) |
| 4G x2 + GPS Waterproof Combination Antenna | Multi-element combination | GPS-enabled models – see Milesight for specific compatibility |
| 4G x2 + Wi-Fi Waterproof Combination Antenna | Multi-element combination | Wi-Fi + 4G models – see Milesight for specific compatibility |
Antenna Magnetic Mount Extension Cables
AntennaSMA magnetic base extensions for relocating antennas to vehicle roofs, cabinet tops, or other metal surfaces. Available in 1.5 m, 5 m, and 12 m lengths for both cellular and Wi-Fi antennas. RG174 coax throughout.
| Part No. | Description | Cable Length | Connector | Compatible Models |
|---|---|---|---|---|
| SSR-2000166 | Cellular Antenna Magnetic Mount Base | 1.5 m | SMA Male to SMA Female | UR32, UR32S, UR32L, UR35, UR41/41L, UF31, UR75v3, UR75v2-4G, UR75v2-5G |
| SSR-2000410 | Cellular Antenna Magnetic Mount Base | 5 m | SMA Male to SMA Female | UR32, UR32S, UR32L, UR35, UR41/41L, UF31, UR75v3, UR75v2-4G, UR75v2-5G |
| SSR-2000411 | Cellular Antenna Magnetic Mount Base | 12 m | SMA Male to SMA Female | UR32, UR32S, UR32L, UR35, UR41/41L, UF31, UR75v3, UR75v2-4G, UR75v2-5G |
| SSR-2000412 | Wi-Fi Antenna Magnetic Mount Base | 5 m | SMA Male to SMA Female | UR32, UR32S, UR35, UR75v3, UR75v2-4G, UR75v2-5G |
| SSR-2000413 | Wi-Fi Antenna Magnetic Mount Base | 12 m | SMA Male to SMA Female | UR32, UR32S, UR35, UR75v3, UR75v2-4G, UR75v2-5G |
| – | 5G 4-in-1 Antenna Magnetic Mount Base (4 x 5 m cables) | 4 x 5 m | SMA | UF31, UR75v3, UR75v2-5G |
Installation Hardware
MountingMounting options include wall brackets, DIN rail kits, and IP-rated waterproof enclosures. DIN rail kits are model-specific – UR32/UR32S/UR32L, UR35/UR75 series, and UR41/UF31 each have different clip designs. The H6 waterproof enclosure suits panel-mounted deployments for the UR32 series.
| Part No. / Reference | Description | Compatible Models |
|---|---|---|
| – | Wall Mounting Bracket | UR32, UR32S, UR32L, UR35, UR75v3, UR75v2-4G, UR75v2-5G |
| 47.000.000129 | DIN Mounting Bracket Kit (L-shaped, UR32 series) | UR32, UR32S, UR32L |
| 43.001.000070 / 47.002.000000 | Black DIN Rail Kit (35 mm clip) | UR32, UR32S, UR32L, UR35, UR75v2-4G, UR75v2-5G |
| 32.000.000119 | DIN Rail Clip (UR75v3 specific) | UR75v3 |
| 43.001.000070 / 47.002.000013 | Silver DIN Rail Kit | UR32, UR32S, UR32L, UR35, UR75v2-4G, UR75v2-5G |
| 32.000.000103 | DIN Rail Clip C45-Type (UR41/UF31) | UR41/41L, UF31 |
| H6 Enclosure | Waterproof Enclosure – Internal: 350 x 270 x 85 mm, ABS, Grey | UR32, UR32S, UR32L, UR35 |
| H6 Honeycomb Panel | H6 Honeycomb Panel Accessory (268 x 350 mm, ABS) | UR32, UR32S, UR32L, UR35 |
Connection Accessories
Cables & ConnectorsUSB cables, Ethernet patch cables, and pluggable terminal blocks. Terminal block pinouts vary by model – the UR32 uses a 6-pin block, the UR35/UR75 series use an 8-pin green block, and the UR41 uses an 8-pin black block. Verify before ordering spares.
| Type | Description | Spec | Compatible Models |
|---|---|---|---|
| USB Cable | USB 2.0 Type-C to Type-A | 1.2 m, OD 3.5 mm | UR41/41L |
| USB Cable | USB 3.0 Type-C to Type-A | 1.2 m, OD 3.5 mm | UF51v2, UR75v3 |
| USB Cable | USB 3.0 Type-C to Type-C | 1 m, 4 A, OD 4.9 mm | UF51v2, UR75v3 |
| Ethernet Cable | Cat6 UTP Patch Cable (flat type) | 0.5 m, black, straight-through | UR32, UR32S, UR32L, UR35, UR41/41L, UF51v2 |
| Terminal Block | 8-Pin Pluggable Terminal Block (green) | 3.5 mm pitch, 2 x 4 pins | UR35, UF51v2, UF51v1, UR75v3, UR75v2-4G, UR75v2-5G |
| Terminal Block | 6-Pin Pluggable Terminal Block (green) | 3.5 mm pitch, 2 x 3 pins | UR32 |
| Terminal Block | 8-Pin Pluggable Terminal Block (black) | 3.5 mm pitch, 2 x 4 pins | UR41/41L |
Power Adapters
PowerWall-mount and desktop power adapters across four product groups. The UR3x series (UR32/UR35) uses a 12 V 1 A adapter with a 5 mm industrial terminal connector. The UR75v3 requires a higher-current 12 V 2 A adapter. PoE models of the UR32 use a 48 V 0.5 A injector, while UR35-P and UR75v3-P use a 48 V 1.25 A desktop adapter with IEC C14 input. The UF51v2 uses a 56 V 30 W PoE adapter. Regional plug variants (UK, EU, US, AU, CN) are available across all adapter groups.
| Group | Part No. | Output | Plug | Certification | Compatible Models |
|---|---|---|---|---|---|
| UR3x Non-PoE | DCT12W120100AU-B2 | 12 V, 1 A | AU | – | UR32, UR32S, UR32L, UR35 |
| DCT12W120100US-B0 | 12 V, 1 A | US | – | ||
| DCT12W120100EU-B2 | 12 V, 1 A | EU | – | ||
| DCT12W120100UK-B2 | 12 V, 1 A | UK | – | ||
| OH-1015A1201000U3-CCC | 12 V, 1 A | CN | CCC | ||
| UR41/41L Non-PoE | OH-1015A1201000U3-CCC | 12 V, 1 A | CN | CCC | UR41, UR41L |
| OH-1015A1201000U3-VDE | 12 V, 1 A | EU | CE | ||
| OH-1015A1201000U3-UL | 12 V, 1 A | US | FCC/UL | ||
| OH-1015A1201000U3-UK | 12 V, 1 A | UK | CE | ||
| OH-1015A1201000U3-SAA | 12 V, 1 A | AU | RCM | ||
| UR75v3 Non-PoE | G99-AAJ024F-A035 | 12 V, 2 A | US | – | UR75v3 |
| G99-AAJ024F-E023 | 12 V, 2 A | AU | – | ||
| G99-AAJ024F-D024 | 12 V, 2 A | UK | – | ||
| G99-AAJ024F-B029 | 12 V, 2 A | EU | – | ||
| G99-AAJ024F-C027 | 12 V, 2 A | CN | – | ||
| UR32 PoE | KT241480050AU | 48 V, 0.5 A | AU | CE/FCC | UR32/UR32S/UR32L-P |
| KT241480050US | 48 V, 0.5 A | US | CE/FCC | ||
| KT241480050EU | 48 V, 0.5 A | EU | CE/FCC | ||
| KT241480050BS | 48 V, 0.5 A | UK | CE/FCC | ||
| UR35/UR75v3 PoE | 2ABF060R | 48 V, 1.25 A | IEC C14 input | – | UR35-P, UR75v3-P |
| IEC C13 EU Cord | – | EU (IEC C13) | UL | ||
| IEC C13 CN Cord | – | CN (IEC C13) | CCC | ||
| IEC C13 US Cord | – | US (IEC C13) | UL | ||
| IEC C13 UK Cord | – | UK (IEC C13) | UL | ||
| IEC C13 AU Cord | – | AU (IEC C13) | UL | ||
| UF51v2 PoE | G99-P030U05-N021 | 56 V, 30 W | Cloverleaf (IEC C5) | – | UF51v2 |
| UK Cloverleaf Cord | – | UK, 250V 2.5A | – | ||
| US Cloverleaf Cord | – | US, 125V 7A, UL | UL | ||
| AU Cloverleaf Cord | – | AU, 125V 10A, UL | UL | ||
| CN Cloverleaf Cord | – | CN, 250V 2.5A, 3C | 3C | ||
| EU Cloverleaf Cord | – | EU, 250V 2.5A | – |
